Rooftop RV Air Conditioner（12V | 24V) |
|
|
Manual |
|
|
Power Supply |
DC-12V | DC-24V |
|
Set Temp |
61°F-86°F |
|
Input Voltage |
12V UNIT:9.5V-13V | 24V UNIT:20v-30v |
|
Default U/O Voltage |
12V UNIT:10.5V-13V | 24V UNIT:21.5V-31.5V |
|
Low-Volt Adj. |
12V UNIT:11V-13.5V | 24V UNIT:19V-24V |
|
Rated Power |
12V UNIT:660W | 24V UNIT:800W |
|
Rated Current |
12V UNIT:55A | 24V UNIT:33.5A （95.0 °F ambient temperature） |
|
Max Cooling |
12V UNIT:10000BTU | 24V UNIT:12500BTU |
|
Compressor |
GMCC 13cc Inverter Twin-Rotary Compressor |
|
Airflow |
224–260 CFM (variable-speed inverter) |
|
Fan Speed |
1000-3500rpm |
|
Evaporator Fan |
Brushless Evaporator Blower Motor |
|
Condenser Fan |
Brushless Condenser Fan Motor |
|
Controller |
Pure Sine Wave Intelligent Inverter Controller |
|
Air Outlet |
Motorized Oscillating Air Vents |
|
Operating Temp |
64°F- 110°F |
|
Refrigeration Oil |
VG74 ·220 ml |
|
Refrigerant Type |
R134a |
|
Refrigerant Charge |
400g±10 |
|
Evaporator |
450 mm (20 copper tubes) |
|
Condenser |
Parallel-Flow Microchannel Aluminum Condenser Size：395×330×20mm |
|
LED Light |
Yes |
|
Package Size |
815×775×290mm |
|
Product Size |
Outdoor unit：703×740×162mm Indoor unit：552X352mm (L × W) |
|
Roof Opening size |
Minimum: 350×230mm Maximum:425×300mm |
|
Power Cable |
12V UNIT:(5 m) 16.4 ft 5 AWG power cable Built-in 80A fuse 24V UNIT:(5 m) 16.4 ft 8 AWG power cable Built-in 60A fuse |
|
Product Weight |
48 lbs |

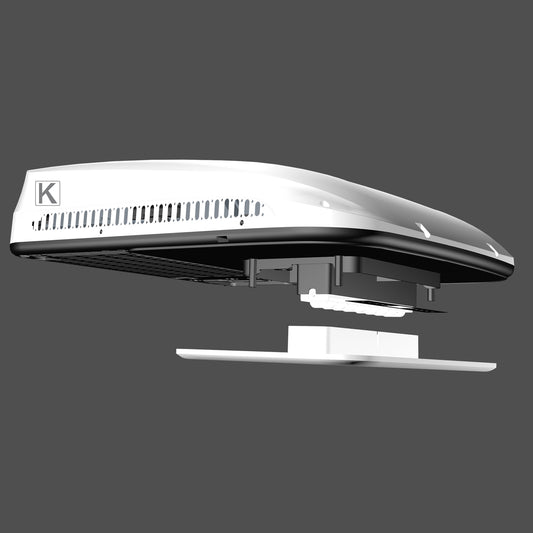

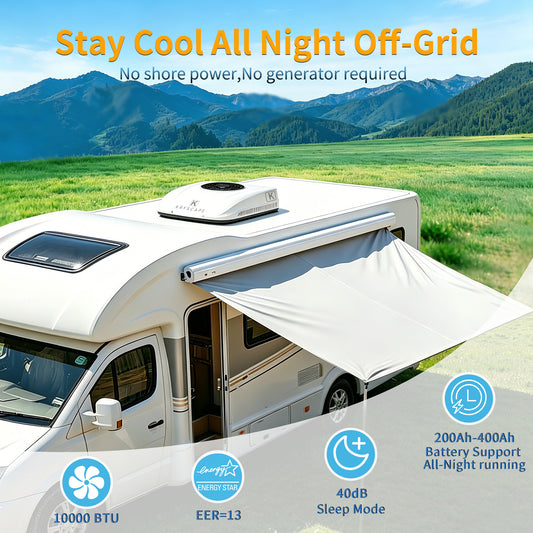

KrysCape 12V/24V RV Rooftop Air Conditioner
Stay Cool. Go Farther. Use Less Power.
The KrysCape Low-Profile RV Air Conditioner is designed for travelers who demand comfort, efficiency, and reliability — wherever the road leads. Built with premium-grade components and advanced DC inverter technology, it delivers powerful cooling while using up to 40% less energy than traditional RV units.

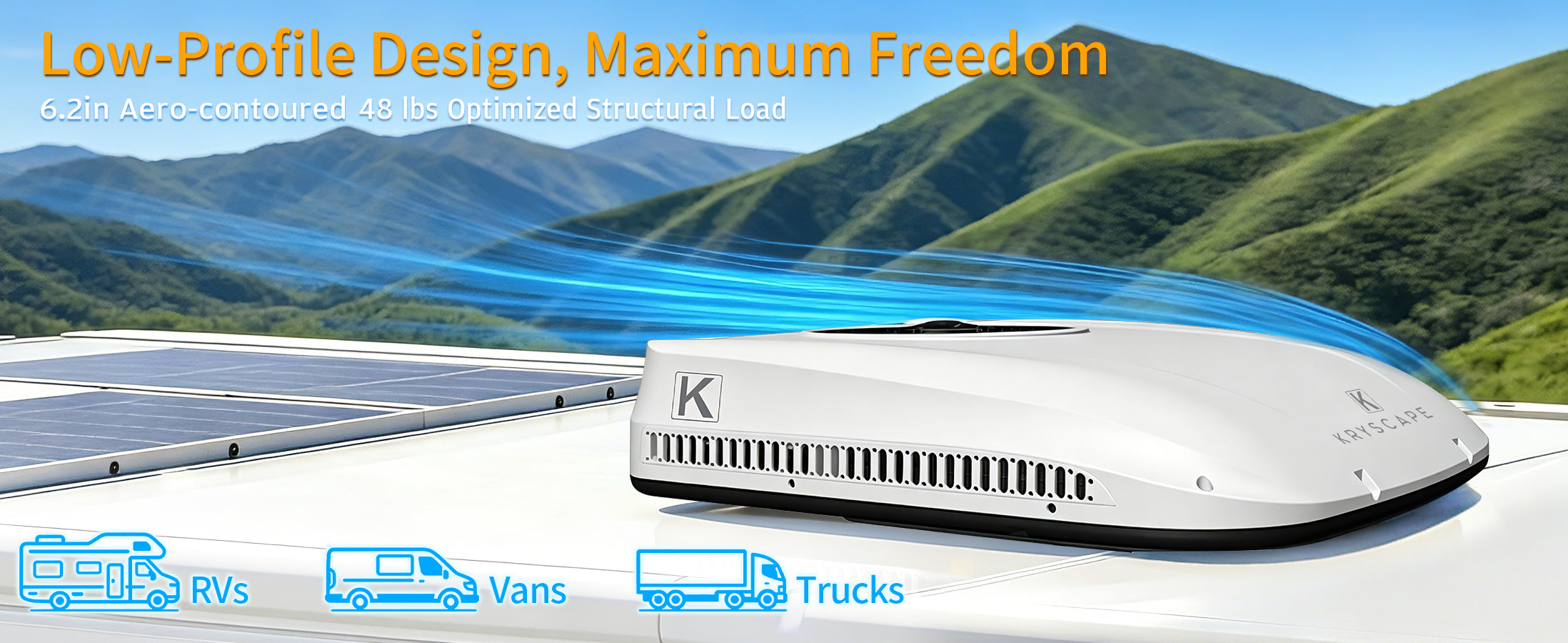

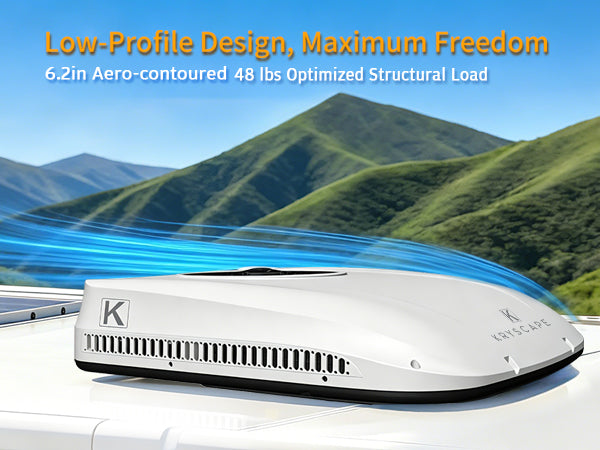

Perfect for RVs, vans, campers, trucks, and off-grid setups, this unit is engineered to perform quietly and efficiently — even on battery or solar power. Its sleek, low-profile design minimizes wind resistance and looks great on any roof.
Key Features

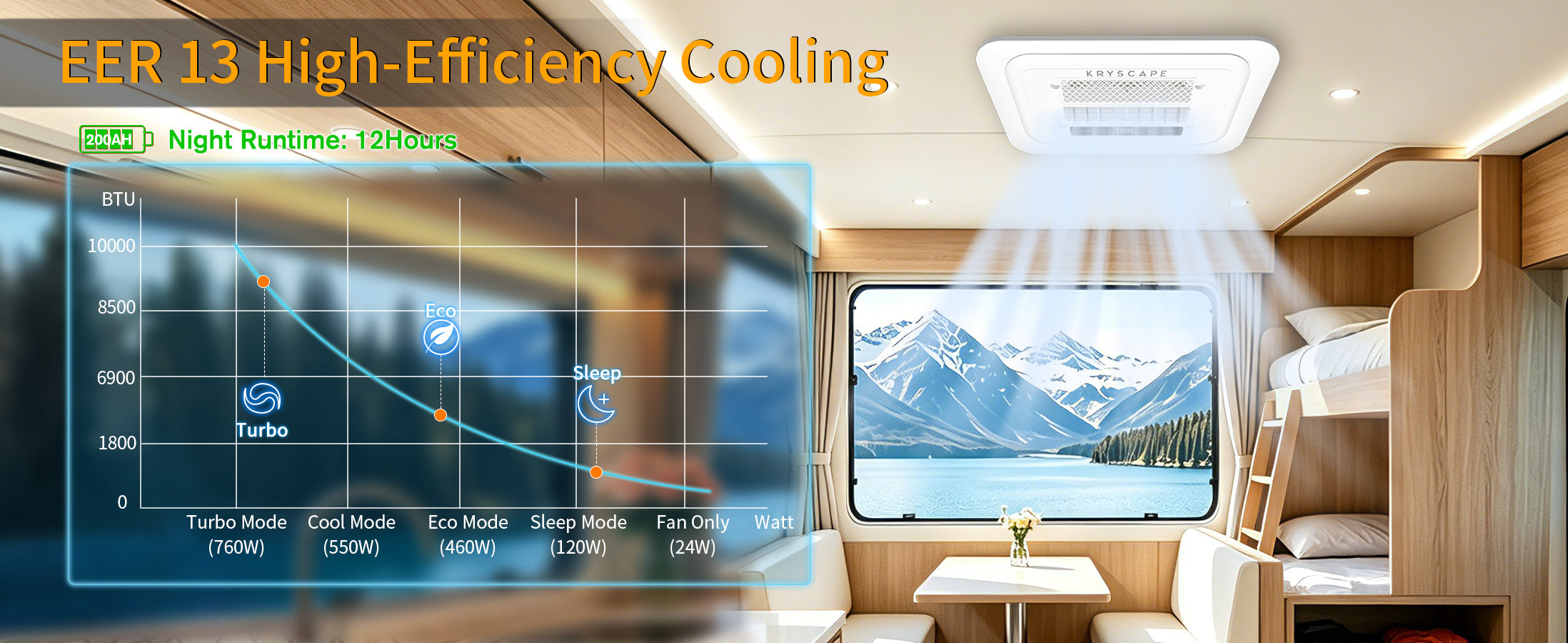

High-Efficiency DC Inverter System – Strong cooling power with minimal energy draw, ideal for off-grid and solar setups.
Ultra-Quiet Operation – Enjoy peaceful nights with noise levels as low as 45dB.
Lightweight & Durable Build – Reinforced housing and corrosion-resistant materials for long-term outdoor performance.
Easy Installation – Designed to replace most standard rooftop fans or AC cutouts (Maxxair, Dometic, etc.).

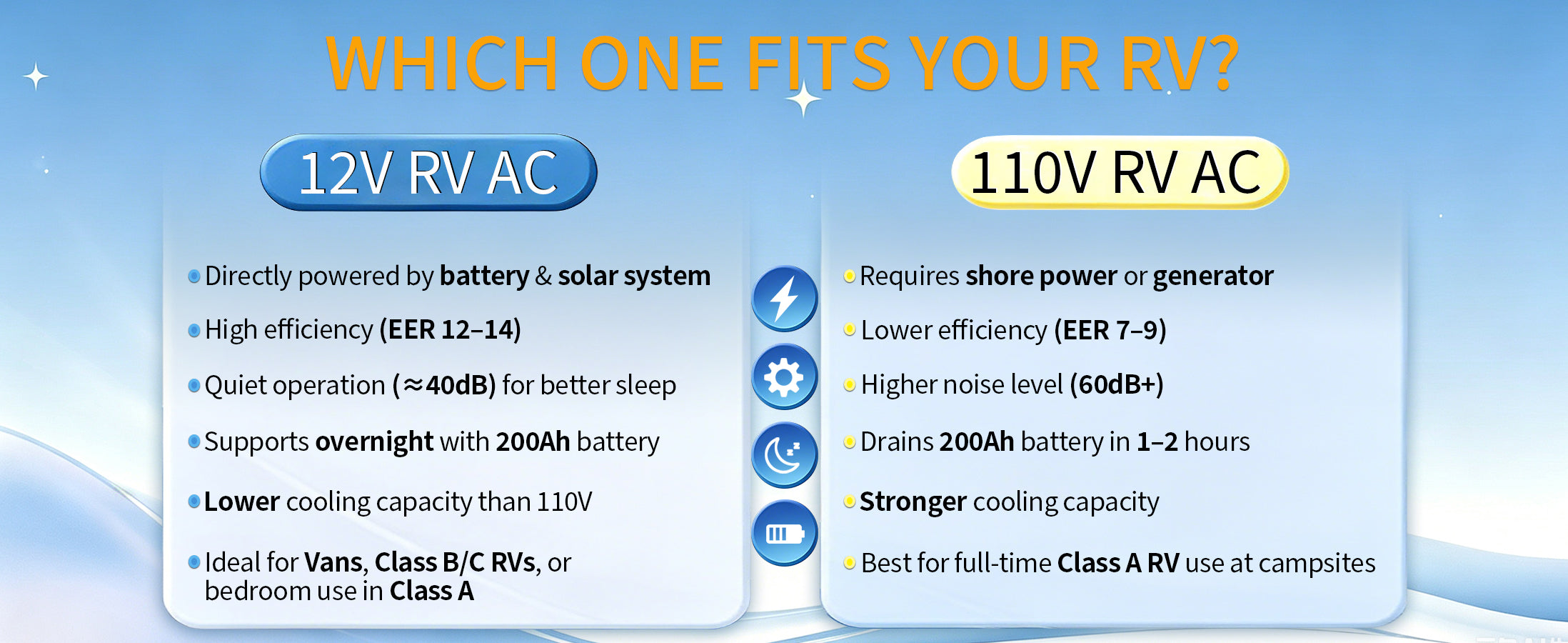

Smart Power Compatibility – Runs on 12V or 24V DC, compatible with battery banks, power stations, or vehicle alternators.
Free Shipping from U.S. Warehouse – 2–5 business days delivery, no hidden fees or import taxes.
Specifications
Cooling Capacity: 10,000 BTU
Voltage Options: 12V / 24V DC
Noise Level: 40dB in sleep mode
Weight: 48 lbs
Warranty & Support
1-Year Free Warranty (Extendable to 2 Years)
Lifetime Technical Support
Responsive Online Service (6 PM – 12 AM PT)
Whether you’re camping in the desert, parked by the coast, or traveling through the mountains, KrysCape keeps your journey cool, efficient, and worry-free.
